Features and Technical Specification

• Having a high value of current (max. 600 mA)
• Low voltage value (max. 40 V)

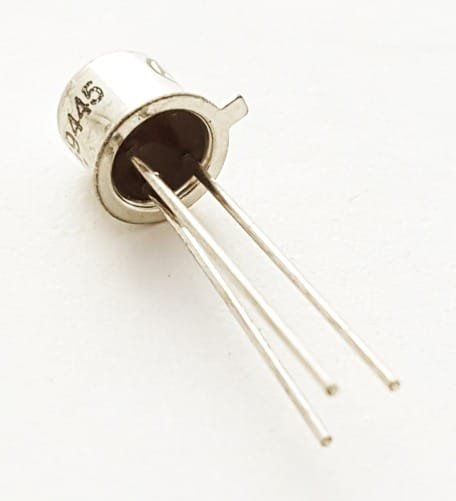

• Comes in different type of packages – TO-92, TO-18
• These are Lead (Pb) free devices
• Collector to Emitter voltage (VCEO) is 40v (max.)
• Collector to Base voltage (VCBO) is 60v (max.)
• Emitter to Base voltage(VEBO) is 5v (normally)
• Maximum value of Collector current is 600mA
• Power dissipation at ambient temperature is about 400mW
• Having DC current gain (hfe) of 100 to 300 (max.)
• Temperature of operation and storage is -65 to +150 °C
