Banana PI plus BPI-M1+ (Dual core single-board computer)

Banana Pi M1 BPI-M1 A20 dual-core Open Source Development Board

Banana PI is an open source platform that was created to run open source elastos.org OS among others. Banana Pi 2 core, Android 4.2 product, which is much better than Raspberry Pi.

Equipment Banana Pi runs on Android, Debian Linux, Ubuntu Linux, openseuse Linux and images that run on Raspberry Pi and cubiedard.

Banana Pi has a gigabit Ethernet port and a SATA socket. It can work with Android 4.2.2 smoothly. Size Banana Pi M1 is about the same size as the credit card. it can easily run the game, since it supports 1080 P High Definition video output. GPIO is compatible with Raspberry Pi and can manage Raspberry Pi images directly.

Add to Wishlist
Compare
Add to wishlist
Compare
Categories: ,
Description


1. Hardware features

CPUA20 ARM® CortexTM-A7 dual core
GPUARM Mali400 MP2 is compatible with OpenGL ES 2.0/1.1
RAM1GB DDR3 (shared with GPU)
Onboard storageSD card (up to 64GB) / MMC card slot can be expanded to 2T SATA hard drive
Onboard network10/100/1000 RJ45 Ethernet (optional USB WIFI Dongle)
Camera inputCamera module with CSI interface
Audio inputMic
Video outputHDMI, CVBS, LVDS/RGB
Audio output3.5 mm audio port and HDMI
power supply5V DC voltage via MicroUSB(DC) or MicroUSB (OTG)
USB 2.0 interface2
Buttonreset button

Power button

UBoot button

GPIO (2X13) portGPIO, UART, I2C bus, SPI bus

CAN bus, ADC, PWM, +3.3v, +5v, ground

LED lightPower status LED light (red)

Network port status LED light (blue)

User-defined LED light (green)

remote controlInfrared
Supported operating systems

AndroidAndroid 4.4DebianUbuntuRaspbian



Supported software
  Scratch

Appearance specification

Product Size92 mm × 60mm
weight48g
Android is a registered trademark of Google Inc.
Debian is a registered trademark of Public Interest, Inc.
Ubuntu is a registered trademark of Canonical Ltd.
Raspberry Pi is a registered trademark of Raspberry Pi Foundation.

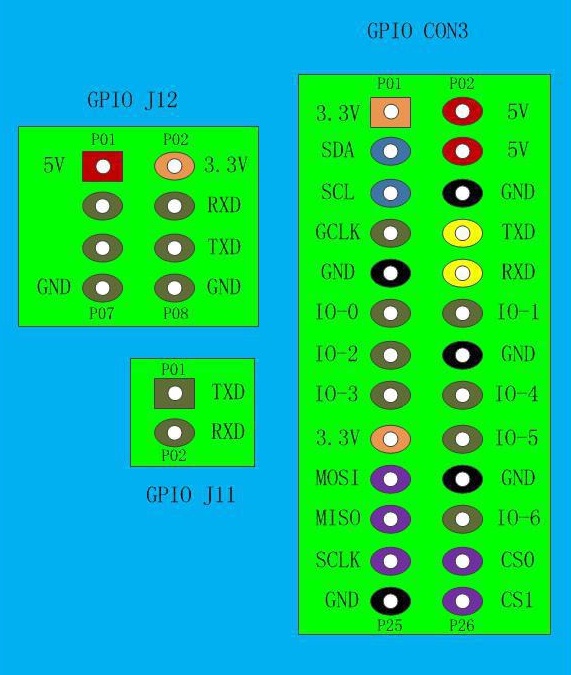

2. Interface definition

Compare table

HTB1hXNtGXXXXXcZXVXXq6xXFXXXY

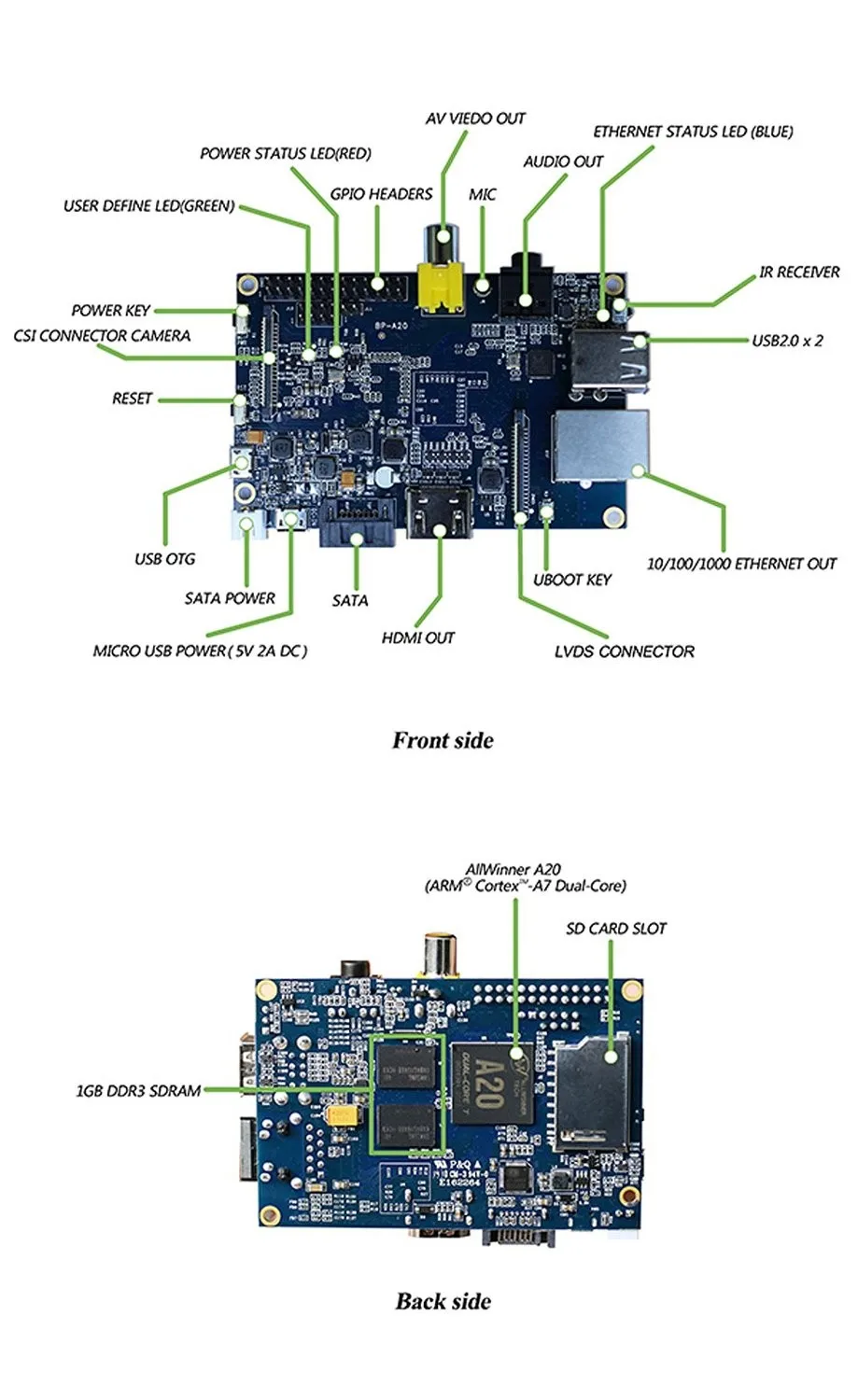

81zM5sKk4dL._SL1500_
