Description:
What is Banana Pi M64?

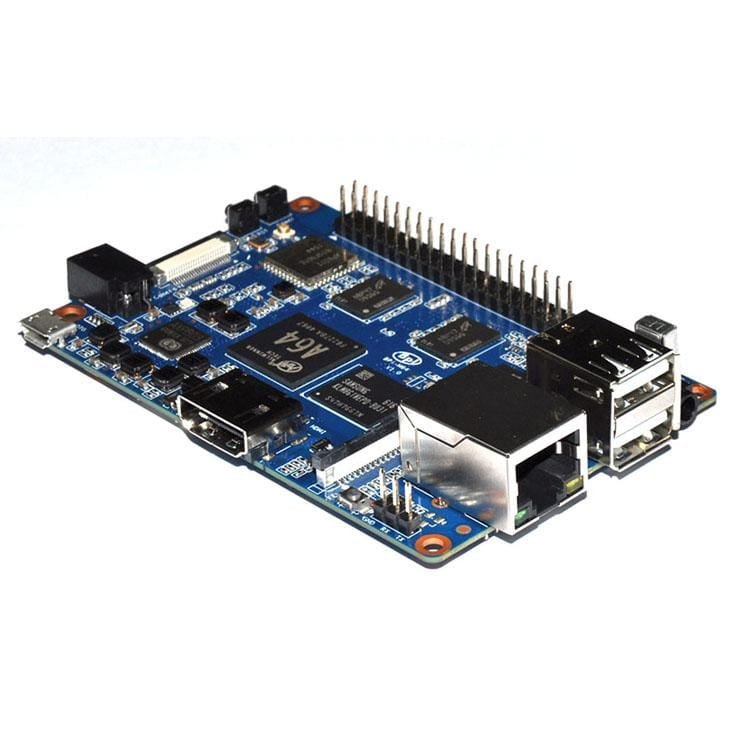

Banana Pi BPI-M64 is a 64-bit quad-core mini single board computer. It features 2GB of RAM and 8GB eMMC. It also has onboard WiFi and BT. On the ports side, the BPI-M64 has 2 USB A 2.0 ports , 1 USB OTG port, 1 HDMI port, 1 audio jack, and lastly a DC power port.
Also being a member of the Banana Pi family, the M64 is a big jump from the octa-core BPI-M3. This is because this Banana Pi BPI is named after its 64-bit SoC. BPI-M4 will be reserved for an upcoming Board:p
Banana Pi is an open platform device, it is for anyone who wants to play and build with developer technology instead of simply using consumer technology. Backed by our community, starting a project and building servers is fun and rewarding. We welcome all companies, DIYers , and tech loving people within our community! Together, we can make a difference, we can discover our passions, inspire others, and build a practical project.
Key Features
– 1.2 Ghz Quad-Core ARM Cortex A53 64-Bit Processor.
– 2GB DDR3 SDRAM with 733MHz.
– 8 GB eMMC storage (16,32,64 options available).
– WiFi (AP6212) & Bluetooth onboard.

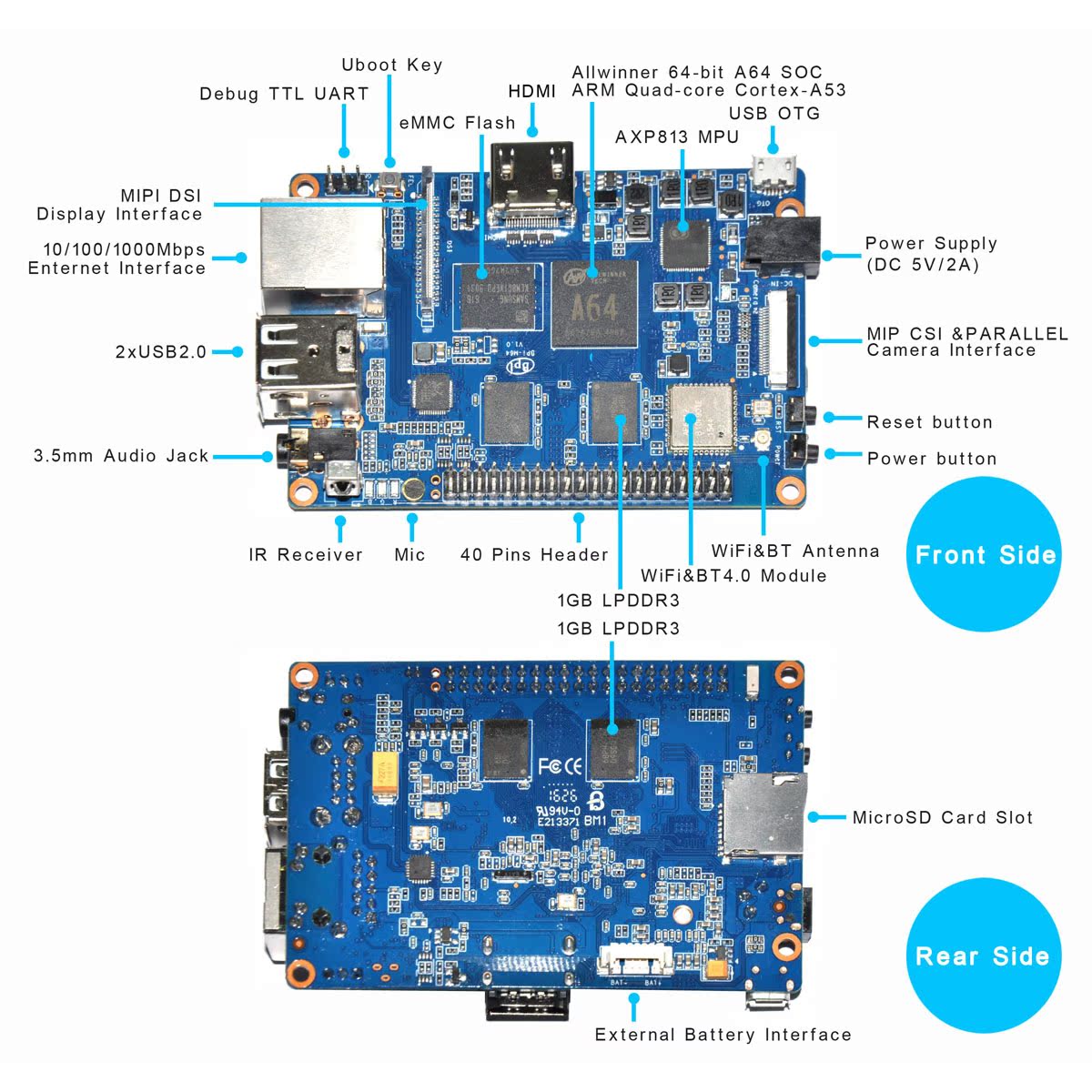

M64 Specifications
| CPU | Allwinner A64 SOC. 1.2 Ghz Quad-Core ARM Cortex A53 64-Bit Processor |
| GPU | MALI-400 MP2 @ 500MHz |
| Memory | 2GB DDR3 SDRAM (shared with GPU) |
| Storage Support | MicroSD Card (up to 64GB) / eMMC (8GB onboard) |
| Onboard Network | 10/100/1000Mbps ethernet (Realtek RTL8211E/D) |
| WiFi | 802.11 b/g/n (AP6212) |
| Bluetooth | BT4.0 (AP6212) |
| Video In | CSI connector that supports 8-bit YUV422 CMOS sensor CSI, CCIR656 protocol for NTSC and PAL, 5MP camera, 1080p video @30Hz |
| Video Out | HDMI 1.4 with resolutions (upto 4K @24Hz) MIPI DSI for RAW LCD panels |
| Audio Out | 3.5 mm Jack and HDMI |
| Audio In | On board microphone |
| Power Source | 5V 2A DC port |
| USB Ports | 2x USB 2.0, USB OTG (Micro USB) |
| Buttons | Reset button, Power button, U-boot button |
| GPIO | 40 Pins: GPIO, UART, I2C bus, I2S bus, SPI bus, PWN, +3.3v, +5v, ground |
| led | Power status Led and RJ45 Led |
| IR | Onboard IR receiver |
| OS | Android and Linux etc.OS |
| Dimensions | 92mm x 60mm |
| Weight | 45g |
