Description:

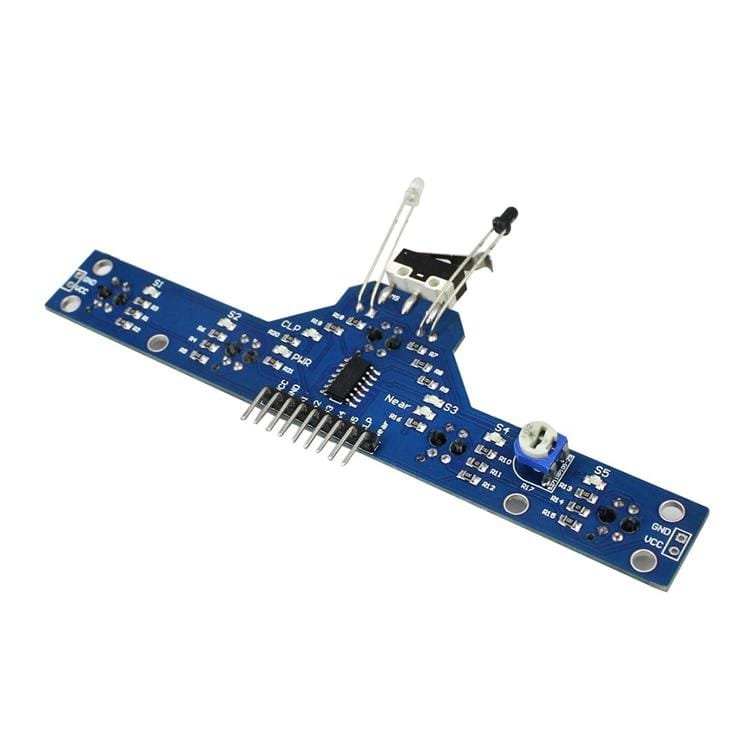

5 Channel Line Tracking Sensor Module (BFD-1000) is a sensor board designed for use with line follower robots. This module has been sufficient to meet the day-to-day task of tracking, but also with the infrared distance sensor and touch detection sensor, the board makes your robot design able to adapt to the situation easily.

General Specifications:

• 5 channel high sensitivity sensor
• High accuracy for tracking black line.
• Distance sensor at the front, distance can be adjusted
• Special touch sensor design, making the robot design simple
• Digital output signal
• Indicator LEDs

Technical Specifications:

• Detection distance: 0 – 4cm(black and white line sensors), 0 – 5cm(adjustable distance detection)
• Input voltage: 3.0V – 5.5V
• Output form: digital output (high and low level)

BFD-1000 integrates a barrier infrared sensors, unblinded distance can be adjusted by sliding rheostat.
BFD-1000 has a specially designed touch detection sensor, making the design more simple from the robot.
BFD-1000 all the output signal to a digital signal (high and low), convenient and microcontroller.
BFD-1000 has all the sensor output status LED light as indicator for easy debugging.
BFD-1000 supports voltage of 3.0-5.5v meet most system requirements.
with high sensitivity of the sensor, the tracking range is between 0.5mm-40mm without any need to make any
adjustments change.
