NEXTION 4.3 Inch Multifunctional HMI Display Module Compatible with Arduino and Raspberry Pi (Basic/ T Series)

Techonics LTD offers the Best Prices of 4.3 inch NEXTION HMI LCD?

You can now purchase this NEXTION 4.3 inch display (T Series) for best prices at TechonicsLTD.com, the Wholesaler and distributor of HMI Displays and other Industrial Automation Product.

Nextion 4.3 inch HMI Display (T Series)

Simplify Your Projects with Nextion

Tired of the complexities of traditional HMI solutions? Nextion offers a seamless and intuitive approach to human-machine interaction. By combining powerful hardware with a user-friendly software editor, Nextion streamlines the development process and delivers stunning results.

Key Features of Nextion:

• Hardware Simplicity: A single serial port connection simplifies wiring and reduces development time.
• Software Excellence: The Nextion editor empowers you to create visually appealing interfaces with drag-and-drop components like buttons, text, progress bars, sliders, and more.
• Rapid Development: Spend less time coding and more time innovating.
• Versatile Applications: Suitable for a wide range of applications, from industrial automation to consumer electronics.

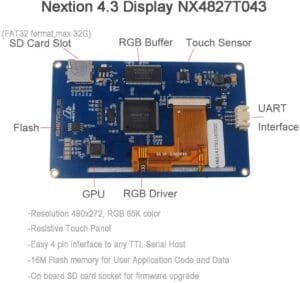

 NX4827T043

The NX4827T043 is a prime example of Nextion’s capabilities. This 4.3-inch HMI offers:

• High-Resolution Display: Crisp visuals for detailed information.
• Intuitive Touchscreen: Easy and precise user interaction.
• Powerful Processing: Seamless performance for complex applications.

Elevate Your Projects with Nextion

Experience the future of HMI design. Choose Nextion and unlock the potential of your devices.

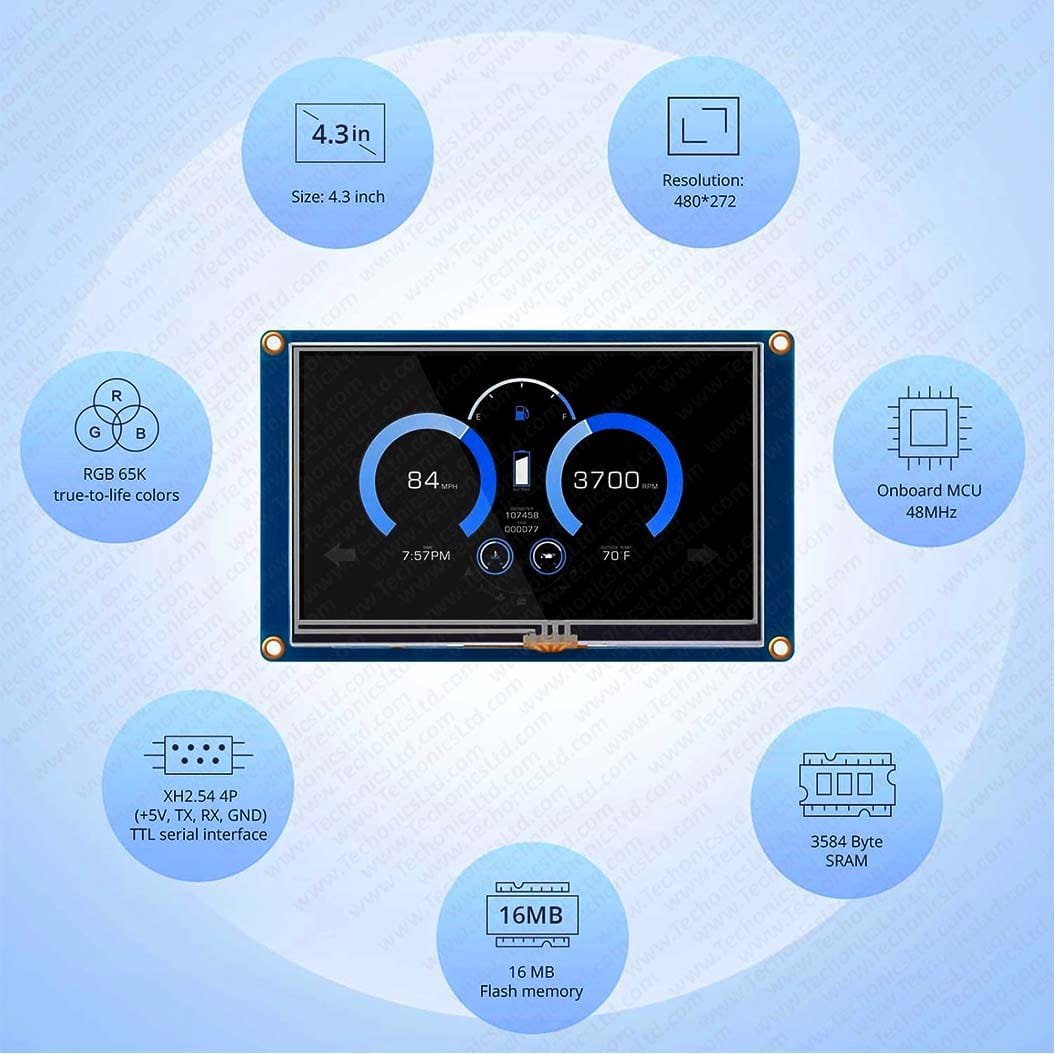

Features:


• Compatible with Raspberry Pi A+, B+, and Raspberry Pi 2.
• 480 x 272 Resolution
• RGB 65K true to life colors
• TFT Screen with integrated 4-wire Resistive Touch Panel
• Easy 4 pin interface to any TTL Serial Host
• 16M Flash memory for User Application Code and Data
• Onboard micro-SD card for firmware upgrade
• Visual Area:95.04mm(L)×53.86mm(W)
• Adjustable Brightness:0~230 nit, the interval of adjustment is 1%

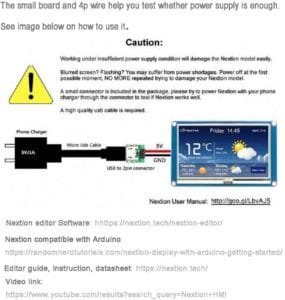

• 5V250mA power consumption

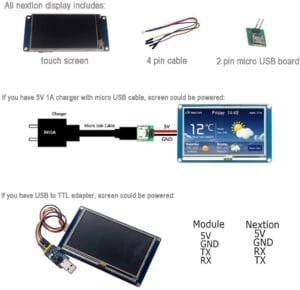

Package included:

• 1 x 4.3 Inch Nextion Standard HMI Display
• 1 x Micro USB to 2P Connector Board
• 1 x 4-Pin Grove Cable
