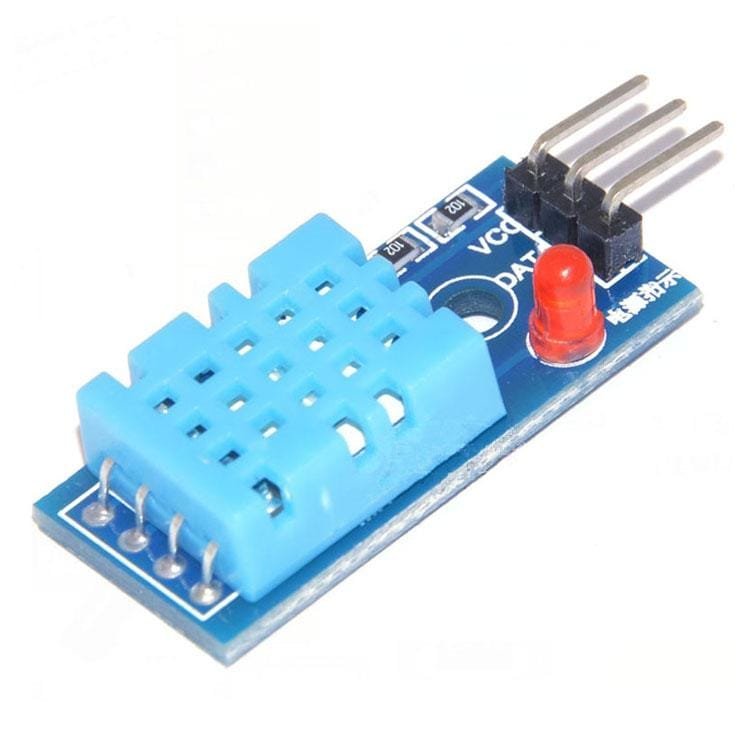

DHT11 (Temperature and Humidity Sensor Module)
DHT11 Temperature and Humidity Sensor Module with LED Power Supply Indicators
Features:
- Can detect surrounding environment of the humidity and temperature
- DHT11 sensor adopts
- Humidity measurement range: 20%-95%, humidity measurement error: +-5%
- Temperature measurement range: 0 -50 ;measurement error: +-2 degrees
- Working voltage 3.3 V-5 V
- Output form: digital output
- Has fixed bolt hole and easy installation
- PCB size: 3.1cm x 1.4cm
