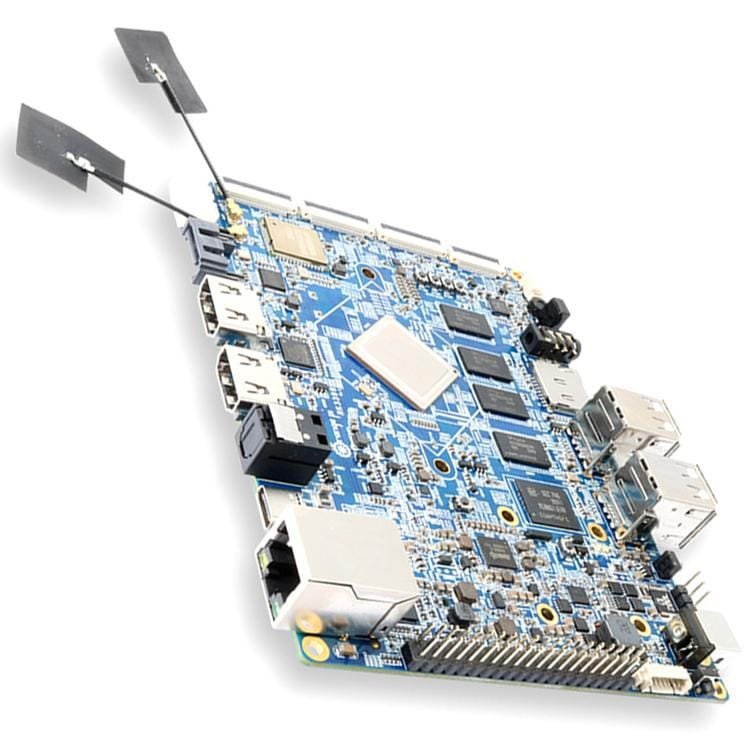

Orange Pi RK3399 2GB DDR3 16GB EMMC (Dual Core Support Development Board Cortex-A72 Android6.0)
Orange Pi RK3399 is for anyone who wants to start creating with technology – not just consuming it. It’s a simple, fun, useful tool that you can use to start taking control of the world around you.
Compare
Related products
Arduino UNO R3 with USB cable (ATMEGA 328P)
Specifications:
Microcontroller ATmega328
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 14 (of which 6 provide PWM output)
Analog Input Pins6
DC Current per I/O Pin 40 mA
DC Current for 3.3V Pin 50 mA
Flash Memory 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM 2 KB (ATmega328)
EEPROM 1 KB (ATmega328)
Clock Speed 16 MHz
Length 68.6 mm
Width 53.4 mm
Weight 25 g
Leonardo R3 Development Board ATMEGA32U4
Product specifications:
• Controller: ATmega32u4 • Work record: 16 MHz • Working voltage: 5V • Input voltage (recommended): 7-12V • Digital IO port: 20 • PWM channel: 7• Analog input: 12• 5V digital / analog port maximum allowable current: 40 mA• 3.3V digital / analog port maximum allowable current: 50 mA• Flash Memory: 32 KB (ATmega32u4) of which 4 KB used by bootloader• SRAM: 2.5 KB (ATmega32u4)• EEPROM: 1 KB (ATmega32u4)
Motor Drive Shield (L293D) for Arduino
L293D is a monolithic integrated, high voltage, high current, 4-channel driver
- Can drive 4 DC motors or 2 stepper motors or 2 Servo.
- Up to 4 bi-directional DC motors with individual 8-bit speed selection.
- Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
- 4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 10V DC.
U-BLOX NEO-6M module (GY-GPS6MV2)
This GPS is a very capable GPS for the price and size. Compatible with UART capable devices including Arduino, Raspberry Pi, MSP430, and MSP432.Power the module and it will automatically acquire satellite signals and a position fix. Once it has a position fix the module will blink the on board LED. This LED will continue to blink while the module has a position fix.The Product contains the following parts;
- 1 — u-blox NEO-6M GY-GPS6MV2 GPS module with on board EEPROM
- 1 — GPS antenna
- 1 — 1x4 male header
WiFly RN-171
Features:
- Ultra low power for battery powered applications
- Firmware configurable transmit power: 0dBm to +12dBm
- Hardware interfaces: UART
- Supports Adhoc and infrastructure networking modes
- User programmable GPIO & ADCs
- Real-time clock for time-stamping, auto-sleep, and auto-wakeup modes
- Run directly from batteries or regulated power supplies
- Configuration over serial or wireless interface using simple ASCII commands
- Over the air firmware upgrade
- Secure Wi-Fi authentication schemes (WEP/WPA/WPA2)
- Full onboard TCP/IP stack (no external drivers required)
