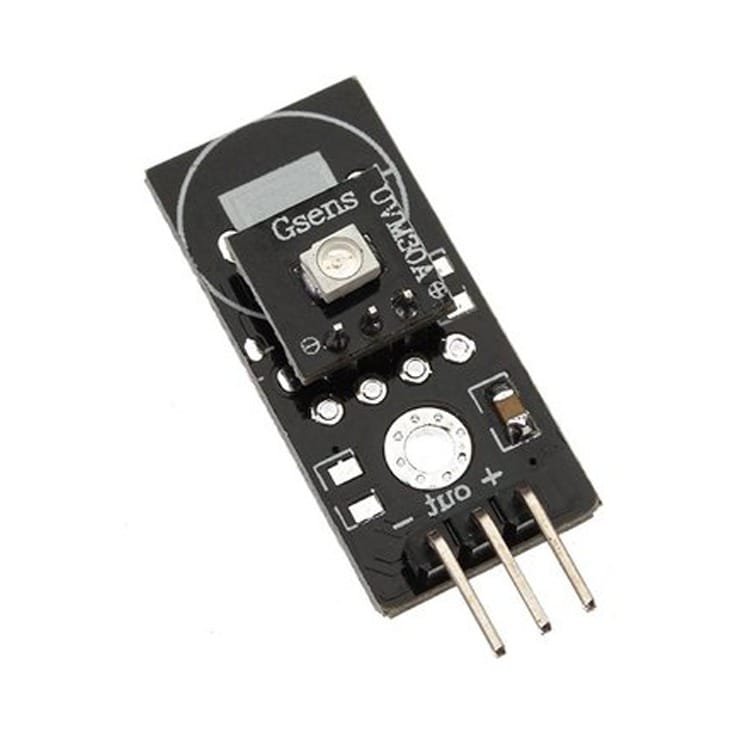

UVM-30A (Ultraviolet Ray Sensor Detection Module)

16 Items sold in last 3 months

Add to compare

Add to wishlist

Delivery to Pakistan

Shipping via Leopards

1-3 Business Days (Normally)

Shipping calculated at checkout.

Delivery to US

Shipping via DHL, UPS, or FedEx.

3-12 Business Days (Normally)

Shipping calculated at checkout.

Payment Methods:

Overview

Feature:

Working voltage: DC 3-5 v
Output voltage: DC 0-1 v
Test accuracy: + / – 1uv INDEX
Working current: Typical values 0.06 mA, The maximum 0.1 mA
Response wavelength: 200 nm to 370 nm
Work stability: – 20 ℃ ~ +85 ℃

Application:

UV tester, UV index instrument, outdoor UV monitoring equipment, sterilization lamp, flame detection

Detailed Description

Characteristics:

Operating voltage : DC 3-5V
Output voltage : DC 0-1V
Test accuracy : ± 1uV INDEX
Operating Current: 0.06mA max 0.1mA typ
Response Wavelength : 200nm-370nm
job stability : -20 ° ~ +85 °
designed for applications requiring high reliability and precision measuring UV Index (UVI) designed for the occasion ;
suitable for measuring the amount of UV intensity of sunlight ;
control World Health Organization classification standard UV Index
UV detection wavelength :200-370nm;
fast response , full interchangeability ;
Using a patented solid polymer structure , waterproof and dustproof easy to clean ;
linear voltage signal output ;
small size , suitable for mobile phones and other portable products.
A long size : 28mm X 12mm X height 10mm width

Application: UV tester, UV index meter, outdoor UV monitoring device, germicidal lamp equipment, fire detection
